U01.16.012 Determination of physiologic dead space

Written by

Learning Objectives

Master the calculation and clinical significance of Physiologic Dead Space ( $V_D$ ). Understand the Bohr Equation, the difference between anatomic and alveolar dead space, and how $V/Q$ mismatching impacts these values in disease for the USMLE Step 1.

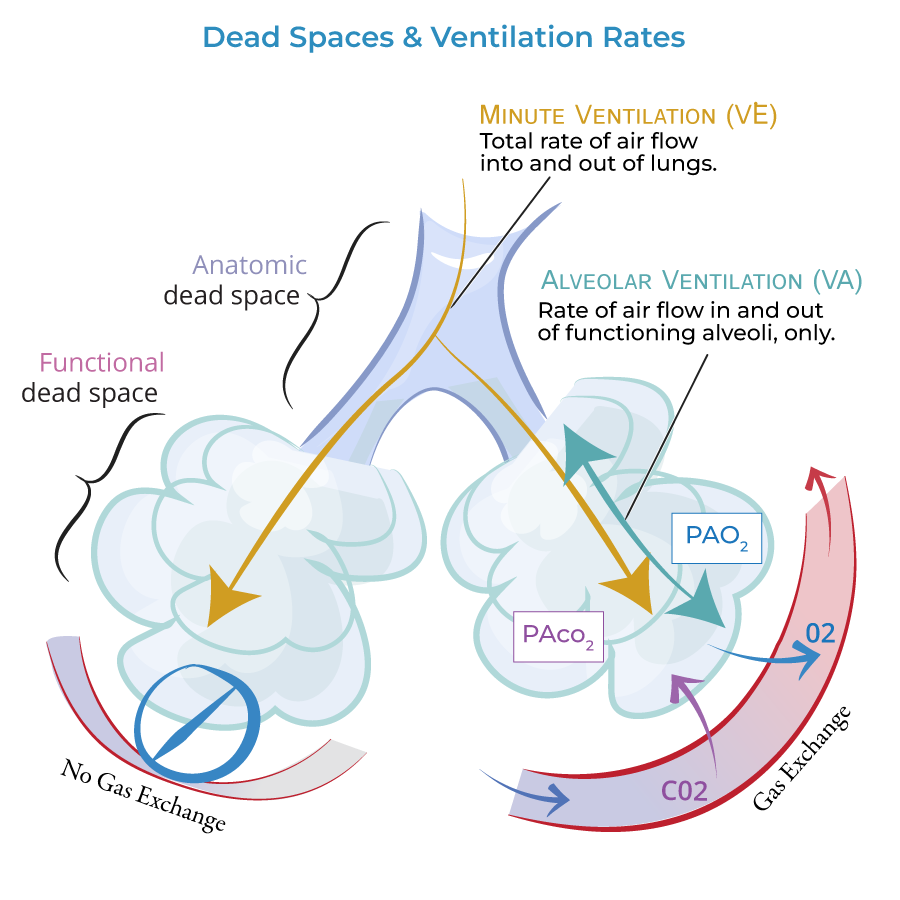

1. Defining Dead Space

Dead space represents the volume of inspired air that does not participate in gas exchange. It is categorized into two main components.

Component	Definition	Clinical Note
Anatomic Dead Space	Volume of the conducting airways (nose to terminal bronchioles).	Constant in healthy individuals ( $\approx 150\ mL$ ).
Alveolar Dead Space	Alveoli that are ventilated but not perfused.	The apex of the healthy lung is the largest contributor.
Physiologic Dead Space	The sum of the anatomic + Alveolar dead space.	In healthy lungs, this equals anatomic dead space.

2. The Bohr Equation

The Bohr equation calculates $V_D$ by comparing the $CO_2$ in arterial blood to the $CO_2$ in expired air. If $V_D$ is large, the expired $CO_2$ will be “diluted” by the air that never reached the alveoli.

Formula: $V_D = V_T \times \frac{PaCO_2 - PeCO_2}{PaCO_2}$

Variable	Description
$V_T$	Tidal Volume.
$PaCO_2$	Arterial $PCO_2$ (measured by ABG).
$PeCO_2$	Mixed Expired $PCO_2$ (measured in exhaled air).

3. Pathophysiological Variations

Physiologic dead space increases when ventilation occurs without adequate blood flow ( $V/Q \to \infty$ ).

Condition	Effect on Dead Space	Mechanism
Pulmonary Embolism	Increases significantly.	Blood flow is blocked, but the lung is still being ventilated.
Healthy Lung Apex	Increases relative to base.	Gravity causes lower perfusion at the top of the lung.
Emphysema	Increases.	Destruction of alveolar walls reduces the capillary surface area for exchange.

Activity:

High-Yield Clinical Pearls:

Taco, Paco, Peco: Use the mnemonic “Taco, Paco, Peco” to remember the order of variables in the Bohr equation: $V_D = V_T \times (Paco - Peco) / Paco$ .
The $CO_2$ Clue: In a perfectly functioning lung with zero dead space, $PeCO_2$ would equal $PaCO_2$ . Any difference between the two indicates the presence of dead space.
Dead Space vs. Shunt: Remember that Dead Space is ventilation without perfusion ( $V/Q = \infty$ ), while a Shunt is perfusion without ventilation ( $V/Q = 0$ ).
