U01.16.033 Flow-Volume Loops in Lung Disease

Written by

in

Learning Objectives

Master the interpretation of Flow-Volume Loops and pulmonary function test (PFT) parameters. Distinguish between Obstructive and Restrictive lung disease patterns, and understand the shifts in lung volumes (TLC, FRC, RV) for the USMLE Step 1.

1. Anatomy of the Flow-Volume Loop

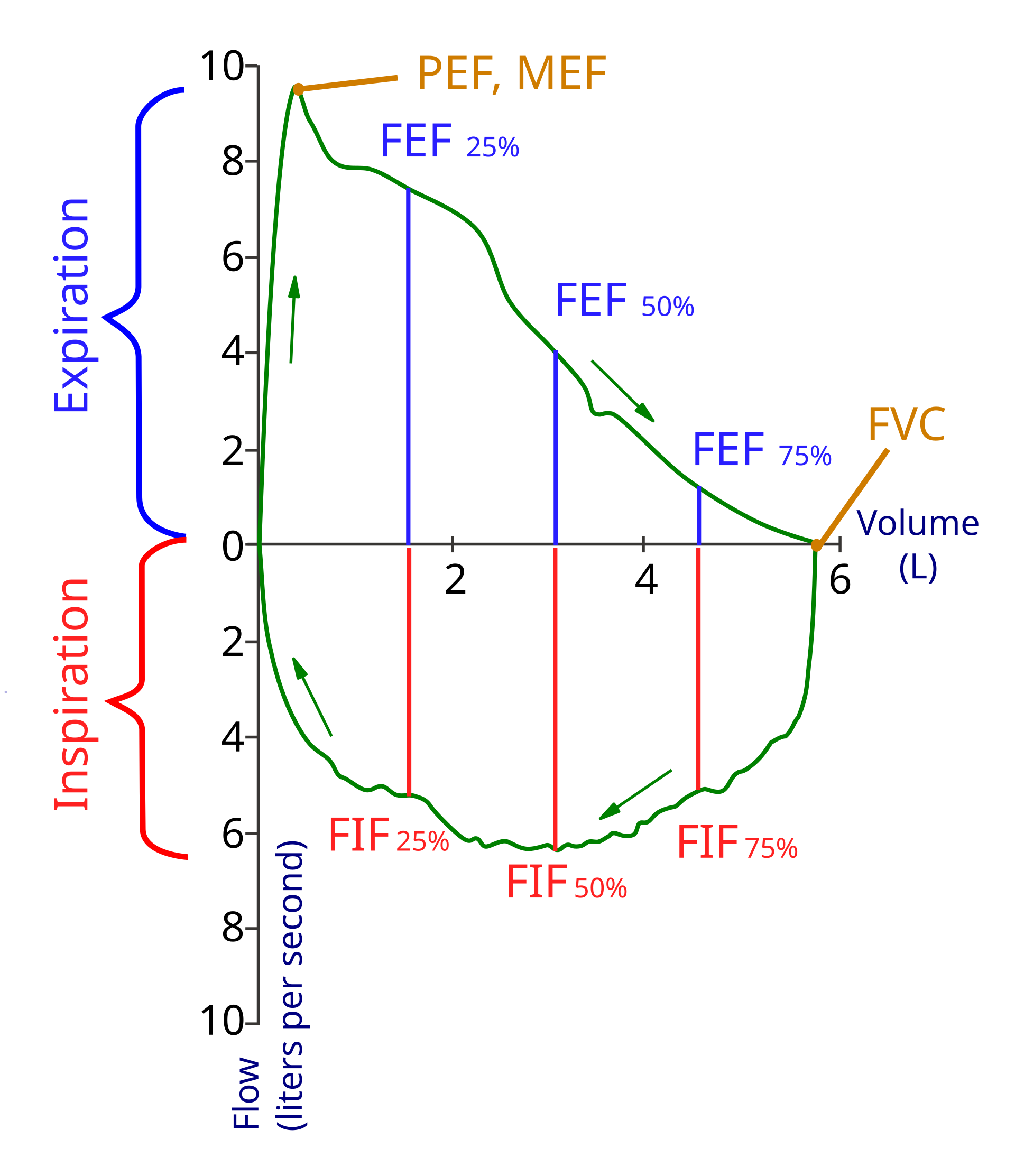

A flow-volume loop plots the rate of airflow (L/sec) against the total volume of air in the lungs. The top half represents expiration (active/effort-dependent), and the bottom half represents inspiration.

Point on Loop Definition
Leftmost Point TLC (Total Lung Capacity): Maximum air inspired.
Rightmost Point RV (Residual Volume): Air remaining after maximal expiration.
Horizontal Width FVC (Forced Vital Capacity): The total volume of air exhaled.

2. Obstructive Lung Disease Pattern

Obstructive diseases (e.g., COPD, Asthma) are characterized by difficulty getting air OUT. This leads to air trapping and hyperinflation.

Parameter Change Why?
Loop Shape “Scooped-out” expiration Premature airway closure during exhalation.
Loop Position Shifts to the LEFT Increased TLC, FRC, and RV due to air trapping.
FEV_1/FVC Ratio Decreased (< 70%) FEV_1 drops significantly more than $FVC$.

3. Restrictive Lung Disease Pattern

Restrictive diseases (e.g., Pulmonary Fibrosis, Obesity) are characterized by difficulty getting air IN. The lungs are small and “stiff.”

Parameter Change Why?
Loop Shape Miniature/Narrow version Overall reduction in all lung volumes.
Loop Position Shifts to the RIGHT Decreased TLC and RV.
FEV_1/FVC Ratio Normal or Increased Both FEV_1 and FVC decrease proportionately.

Activity:

High-Yield Clinical Pearls:

  • The Left Shift: If the loop is “fat” and moves left, it’s Obstructive (think big, air-filled lungs).
  • The Right Shift: If the loop is “thin” and moves right, it’s Restrictive (think small, scarred lungs).
  • Upper Airway Obstruction: Look for a flattening of both the inspiratory and expiratory limbs (the “box” shape).
