M04.07.01 Lung Volumes and Capacities
Understanding lung volumes and capacities is crucial in assessing lung function and diagnosing respiratory diseases. This section explores the different lung volumes and capacities, providing a comprehensive overview of their significance in respiratory physiology.

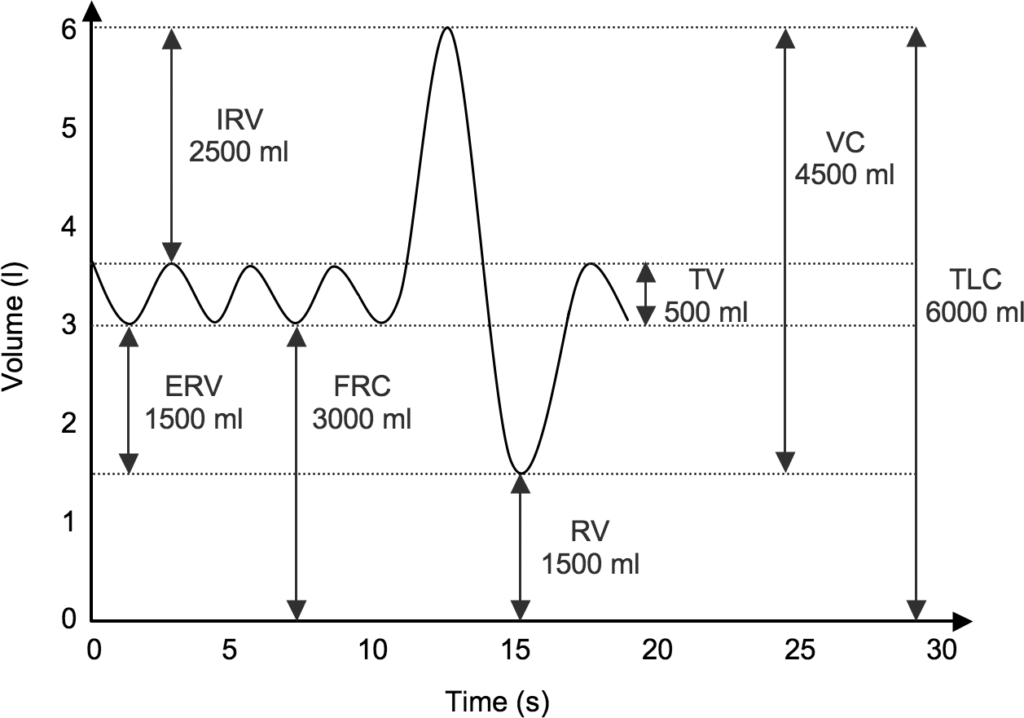

Lung Volumes
- Tidal Volume (Vt):
- Definition: The amount of air that enters or leaves the lungs during a single respiratory cycle.
- Typical Value: 500 mL
- Inspiratory Reserve Volume (IRV):
- Definition: The additional amount of air that can be inhaled after a normal inspiration.
- Typical Value: 3,500 mL
- Expiratory Reserve Volume (ERV):
- Definition: The additional volume of air that can be expired after a passive expiration.
- Typical Value: 1,500 mL
- Residual Volume (RV):
- Definition: The amount of air remaining in the lungs after a maximal expiration.
- Typical Value: 1,200 mL
Lung Capacities
- Functional Residual Capacity (FRC):
- Definition: The amount of gas remaining in the lungs at the end of a passive expiration. It represents the neutral or equilibrium point for the respiratory system.
- Significance: A marker for lung compliance.
- Typical Value: 2,700 mL
- Inspiratory Capacity (IC):
- Definition: The maximal volume of gas that can be inspired from FRC.
- Typical Value: 4,000 mL
- Vital Capacity (VC):
- Definition: The maximal volume of air that can expire after a maximal inspiration.
- Typical Value: 5,500 mL
- Total Lung Capacity (TLC):
- Definition: The total amount of air in the lungs after a maximal inspiration.
- Typical Value: 6,700 mL
Table: Lung Volumes and Capacities
| Volume/Capacity | Definition | Typical Value (mL) |
|---|---|---|
| Tidal Volume (Vt) | Air per respiratory cycle | 500 |
| Inspiratory Reserve Volume (IRV) | Additional air after normal inspiration | 3,500 |
| Expiratory Reserve Volume (ERV) | Additional air after passive expiration | 1,500 |
| Residual Volume (RV) | Air remaining after maximal expiration | 1,200 |
| Functional Residual Capacity (FRC) | Gas in lungs after passive expiration | 2,700 |
| Inspiratory Capacity (IC) | Maximal gas inspired from FRC | 4,000 |
| Vital Capacity (VC) | Maximal air expired after maximal inspiration | 5,500 |
| Total Lung Capacity (TLC) | Total air in lungs after maximal inspiration | 6,700 |
Points to Remember
- Spirometry Limitations: Spirometry measures changes in lung volume but cannot measure Residual Volume (RV), Total Lung Capacity (TLC), or Functional Residual Capacity (FRC) directly. These require indirect methods such as helium dilution, nitrogen washout, or plethysmography.
- Clinical Relevance: Understanding these volumes and capacities is essential for diagnosing and managing respiratory conditions.
Bibliography
- West, J. B. (2012). Respiratory Physiology: The Essentials. Lippincott Williams & Wilkins.
- Levitzky, M. G. (2018). Pulmonary Physiology, 9th Edition. McGraw-Hill Education.
