Learning Objective
Interpret and analyze the ROC curve to evaluate the diagnostic accuracy of clinical tests and distinguish between test sensitivity and specificity in the context of USMLE Step 1–level scenarios.

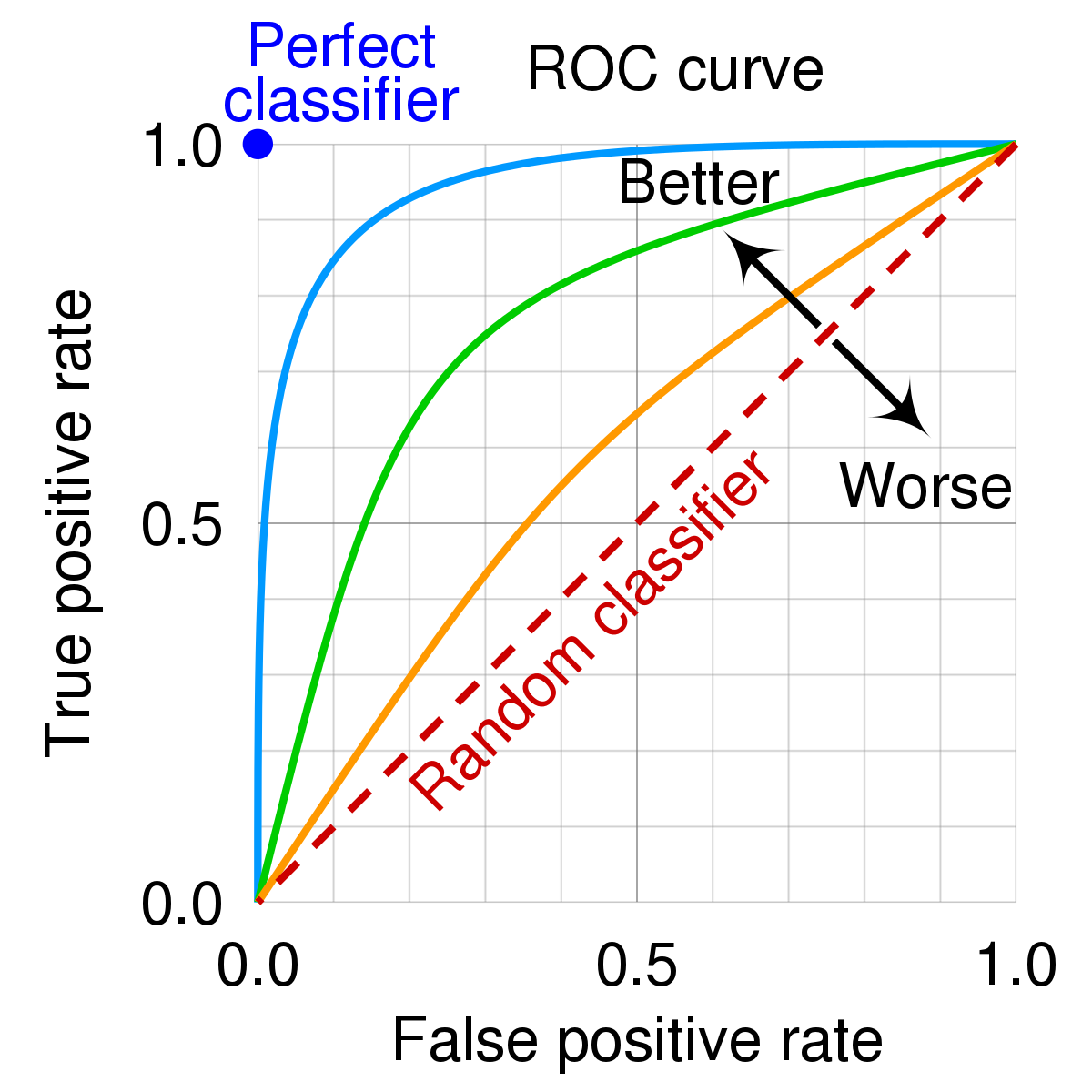

Overview of ROC Curve
| Parameter | Definition |
|---|---|
| ROC Curve (Receiver Operating Characteristic Curve) | A graphical representation of a diagnostic test’s ability to differentiate between diseased and healthy individuals. |
| X-axis | 1 – Specificity (False Positive Rate) |
| Y-axis | Sensitivity (True Positive Rate) |
| Each Point on Curve | Represents a different cutoff threshold of the test. |
| Diagonal Line (45°) | Represents a random test (AUC = 0.5). |
| Upper Left Corner | Represents a perfect test (AUC = 1.0). |
Key Concept Table
| Term | Meaning | Clinical Relevance |
|---|---|---|
| Sensitivity | True Positive Rate = TP / (TP + FN) | Proportion of actual positives correctly identified. |
| Specificity | True Negative Rate = TN / (TN + FP) | Proportion of actual negatives correctly identified. |
| False Positive Rate (1 – Specificity) | FP / (FP + TN) | Increases as the threshold for positivity decreases. |
| Area Under the Curve (AUC) | Measures test accuracy | Higher AUC → better discriminatory ability. |
Key Points for USMLE Step 1
- ROC curves compare diagnostic performance across different tests.
- AUC = 1.0 → perfect test; AUC = 0.5 → useless test.
- The test closer to the upper-left corner is more accurate.
- ROC analysis helps determine the optimal cutoff for balancing sensitivity and specificity.
- Useful in evaluating screening tests and biomarkers (e.g., troponin, D-dimer, PSA).
Clinical Correlation Example
